Akytec SMI2 Modbus RS-485 Green Indicator 4 Digit 7 Segment LED Display (24x48mm)
4.4 (42 items)
Limited Time SaleUS$77.97 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 222657817 | Release Date | 2026/05/04 | List Price | US$51.98 | Model Number | 222657817 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The SMI2 is a universal applicable display unit for monitoring industrial processes. It has a Modbus RTU RS485 interface and the measured values can be displayed up to four digits. The SMI2 has a compact, standardized design and fits into a standard 22.5 mm bore-hole for signal lamps. This provides quick and easy installation and many displays can be allocated in a control cabinet door or on a panel.The SMI2 can act as a Modbus RTU/Ascii Master or Slave. It can display modbus registers that are int, word, float or StringFeatures:Can be used as a Modbus Master or SlaveDisplays values in an RS485 networkSupports several variable types: int, word, float, stringDisplays alarm for values outside the specified rangeSupported protocols: Modbus RTU / ASCIIAreas of application:The RS485 display SMI2 can be used for a multitude of tasks. For example for simple control systems without their own display, the important data from the PLC or the I/O modules for diagnostic purposes can be displayed in a space-saving manner. The SMI2 can also be installed in a remote control panel, in order to display the necessary control values close to the operator. The displays can be quickly and easily integrated into the existing network with the enclosed configuration software.Specifications:Power supply: 12 / 24 (10.5 to 30) VDCPower consumption: Max. 1.5 WInterface: RS485 (2-wire bus)Display LED: 4 digits, 7 segmentProtocols: ModBus RTU / ASCII, akYtecProtection class: IIICharacter height: 14 mmDisplay colour: GreenBaud rate: 2.4 to 115.2 kBit/sIP Code: Front IP65, rear IP20Ambient temperature: -40 to +70 °CStorage temperature: -25 to +70 °CHumidity: Up to 80% (non-condensing)Galvanic isolation: YesWeight approx.: 30 gDimensions: 48 x 26 x 65 mm
- Interface: RS485 (2-wire bus)
- Power supply: 12 / 24 (10.5 to 30) VDC
- Baud rate: 2.4 to 115.2 kBit/s
- Display LED: 4 digits, 7 segment
- Protocols: ModBus RTU / ASCII, akYtec
- Can be used as a Modbus Master or Slave
- Skill Level: Assembled and Tested
| UPC | 769293582258 |
|---|---|
| Brand | Ocean Controls |
| Color | Green |
| Aspect Ratio | 4:3 |
| Display Type | 7 segment |
| Manufacturer | Ocean Controls |
| Model Number | AKI-030G |
| Refresh Rate | 60 Hz |
| Has Color Screen | No |
| Display Technology | LED |
| Additional Features | Modbus RTU/ASCII Master or Slave, RS485 Interface, Galvanic Isolation, IP65 Front Protection |
| Connectivity Technology | RS485 |

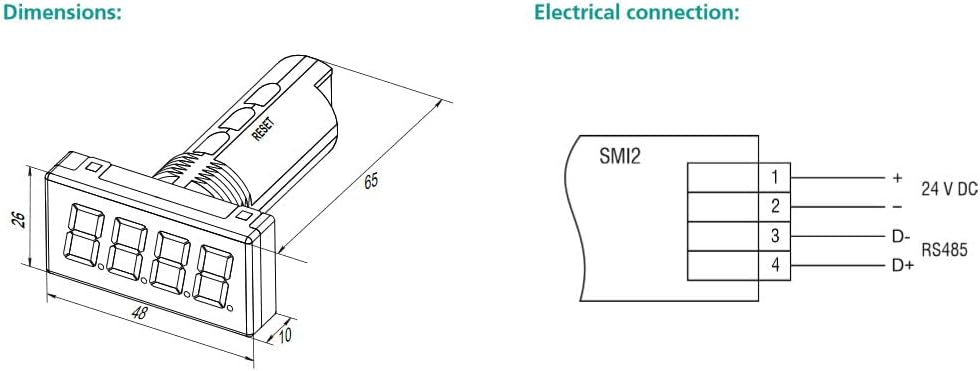

| Item Dimensions D x W x H | 2.55"D x 1.89"W x 1.02"H |
